उत्पाद विवरण:
भुगतान & नौवहन नियमों:
|

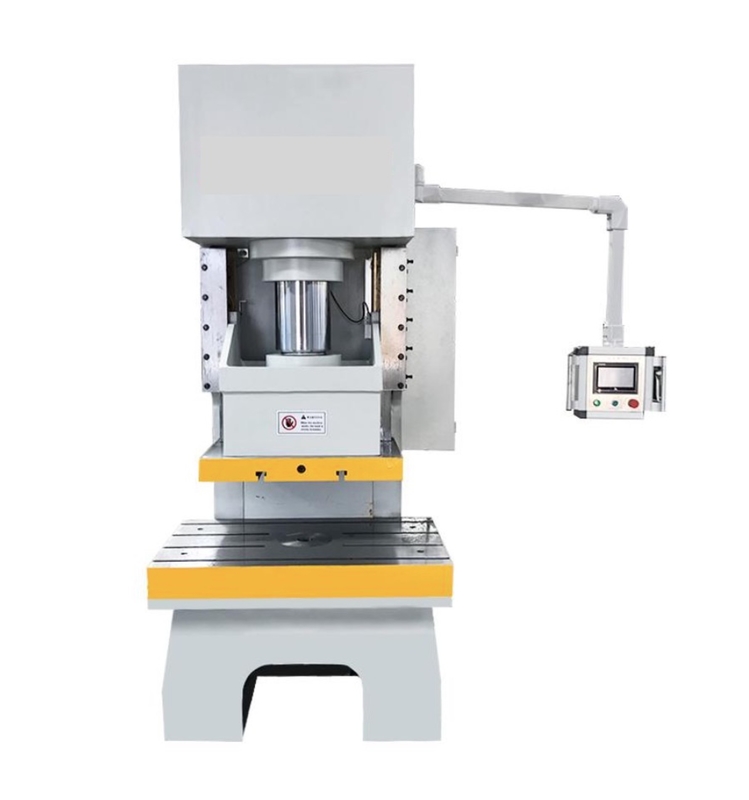

| नाम: | हाइड्रोलिक पंचिंग प्रेस | मुख्य सिलेंडर: | 125 टन |
|---|---|---|---|
| तालिका का आकार: | 1000x600 | गर्दन: | 310 |
1, The working environment of the machine tool:
● Temperature: 0 ° C-50 ° C.
● Humidity: Relative humidity below 35% -65%.
Voltage: 380V 50Hz.
Installation site: Less dust
2, Performance and features:
This machine is equipped with independent hydraulic and electrical control systems, which are centrally controlled by buttons.
3, Main technical parameters of the machine tool:
| Parameter | Unit | YC21-125T |
| Nominal force | KN | 1250 |
| Maximum system pressure | Mpa | 25 |
| open height | mm | 500 |
| Effective stroke | mm | 260 |
| Effective size of workbench (left and right) | mm | 1000 |
| Effective size of workbench (front and rear) | mm | 600 |
| Throat depth | mm | 310 |
| Slide size (left/right * front/back) | mm | 550*400 |
| Diameter of the material discharge hole on the workbench | mm | 220 |
| Motor Power | KW | 15 |
4,Main supporting facilities
| High pressure oil pump | Shaoyang Weike |
| hydraulic system | Shandong Taifeng |
| electrical machinery | Nanjing Global/Lianyungang Ruibao |
| electrical equipment | Delixi/Schneider |
5,Safety protection
| No | item | measure |
| 1 | mechanical protection | Electric motors and rotating components have rotation direction markings |
| There is a zebra crossing warning on the lower edge of the slider | ||
| 2 | Hydraulic protection | System overflow valve to prevent overpressure |
| 3 | Electrical protection | The electric motor adopts thermal relay protection |
| The control circuit protection adopts low-voltage circuit breakers | ||
| Emergency stop button | ||
| There is an overtravel switch protection at the bottom dead center of the slider | ||
| Safe and reliable grounding device | ||
| 4 | Operational safety measures |
In case of emergency, press the "emergency stop" button |
| Safety sign: The bottom edge of the slider has zebra crossings, etc. |
